Building toppled over.
Just got this e-mail this morning.
Dear Brothers and Sisters:
The next time someone belly-aches about onerous regulations, show them this! And, remember to thank all of the Engineers – Structural, Mechanical, Electrical, Environmental and Resident – who help prevent this from happening to us!
In Solidarity,
Ricardo Hinkle, President
DC37, Local 375, Chapter 7
NYC Parks and Recreation
Olmsted Center

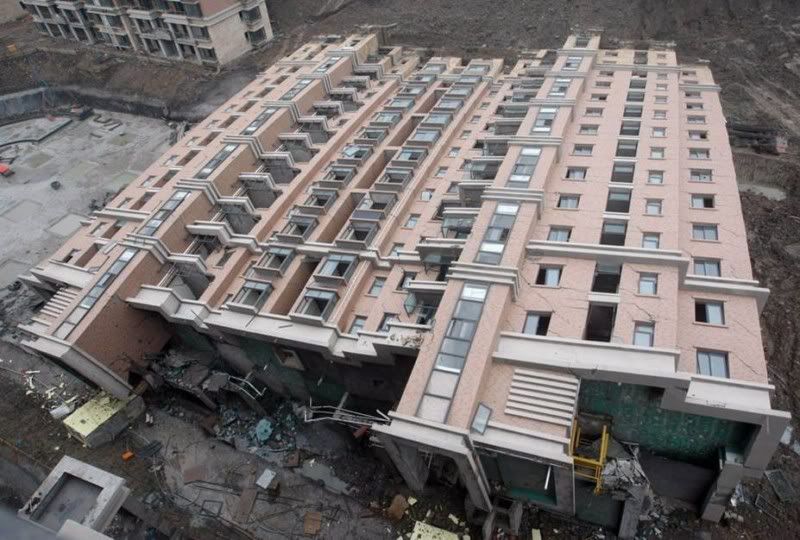

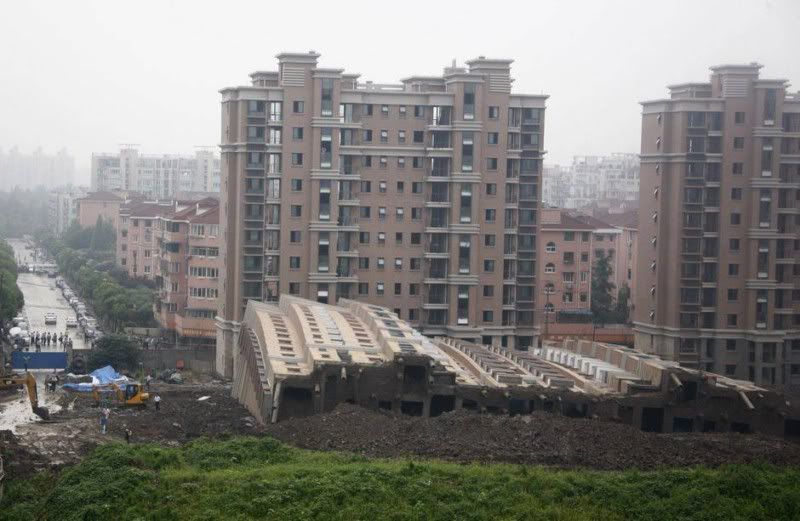

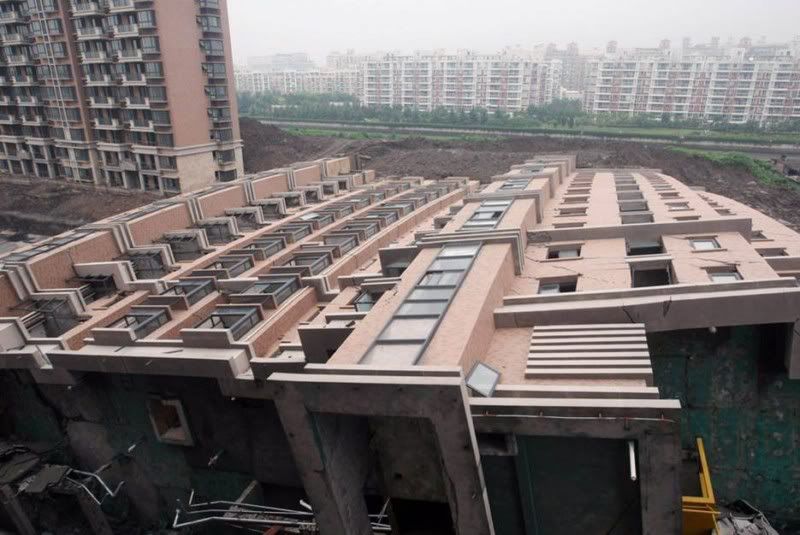

YES, IT IS A 13 STORY BUILDING LYING ON THE GROUND.
(1) An underground garage was being dug on the south side, to a depth of 4.6 meters
(2) The excavated dirt was being piled up on the north side, to a height of 10 meters
(3) The building experienced uneven lateral pressure from south and north
(4) This resulted in a lateral pressure of 3,000 tonnes, which was greater than what the pilings could tolerate. Thus the building toppled over in the southerly direction.
First, the apartment building was constructed
Then the plan called for an underground garage to be dug out.

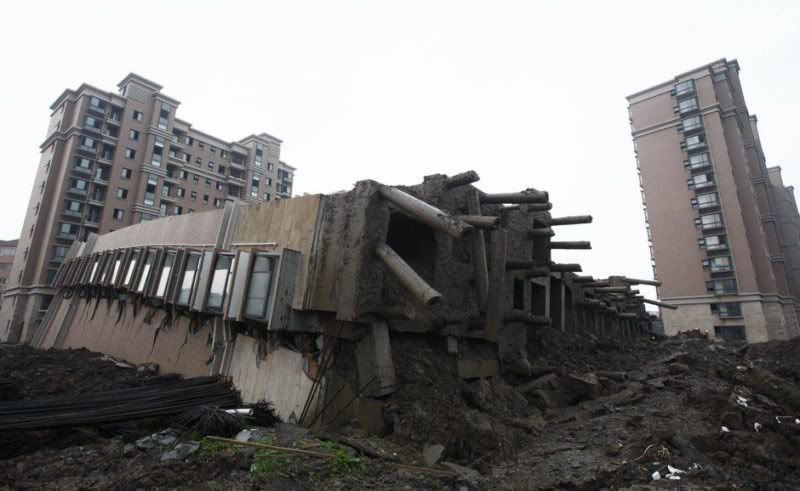

The building began to shift and the concrete pilings were snapped
Dear Brothers and Sisters:
The next time someone belly-aches about onerous regulations, show them this! And, remember to thank all of the Engineers – Structural, Mechanical, Electrical, Environmental and Resident – who help prevent this from happening to us!
In Solidarity,
Ricardo Hinkle, President
DC37, Local 375, Chapter 7
NYC Parks and Recreation
Olmsted Center
YES, IT IS A 13 STORY BUILDING LYING ON THE GROUND.
(1) An underground garage was being dug on the south side, to a depth of 4.6 meters
(2) The excavated dirt was being piled up on the north side, to a height of 10 meters
(3) The building experienced uneven lateral pressure from south and north
(4) This resulted in a lateral pressure of 3,000 tonnes, which was greater than what the pilings could tolerate. Thus the building toppled over in the southerly direction.
Then the plan called for an underground garage to be dug out.
The excavated soil was piled up on the other side of the building.
Heavy rains resulted in water seeping into the ground..The building began to shift and the concrete pilings were snapped
Due to the uneven lateral pressures.
The building began to tilt.
And thus came the eighth wonder of the world.
If the buildings were closer together there would also have been a domino effect.The building began to tilt.
And thus came the eighth wonder of the world.
They built 13 stories on grade, with no basement, and tied it all down to hollow pilings with no rebar.
Last edited by Line7; Dec 7, 2010 at 09:01 AM.
I
Joined: Jan 2001
Posts: 56,525
Likes: 0
From: Westside til I die
lulz
__________________
2015 Ford Mustang GT Fastback - Ingot Silver - 6M - Performance Package - Gibson Catback, JLT CAI, FR 47lb injectors, BAMA E85 tune, Eibach Sportline, BMR wheel hop kit, UPR oil separator, Steeda shifter bushing/bracket
Team B.O.B.® - Ballaz on a Budget
2015 Ford Mustang GT Fastback - Ingot Silver - 6M - Performance Package - Gibson Catback, JLT CAI, FR 47lb injectors, BAMA E85 tune, Eibach Sportline, BMR wheel hop kit, UPR oil separator, Steeda shifter bushing/bracket
Team B.O.B.® - Ballaz on a Budget
Live Free Or Die
Joined: Apr 2003
Posts: 2,388
Likes: 1
From: San Diego County
Lateral earth pressure may have been the cause of the failure, but some of the piles look bent, so they are likely steel piles, not concrete. That is why they are hollow and don't contain rebar. It might be that the material the building was founded on wasn't properly compacted so the combination of water and nearby excavation undermined the building foundation and the thing toppled over.
Edit: The soil under the building was probably unsuitable, which is why they founded the building on piles, not directly in the soil. High lateral earth pressure may indeed be the cause. Or the piles weren't driven deep enough.
Edit: The soil under the building was probably unsuitable, which is why they founded the building on piles, not directly in the soil. High lateral earth pressure may indeed be the cause. Or the piles weren't driven deep enough.
Last edited by azn_redneck; Dec 7, 2010 at 06:00 PM.
Member
Joined: Dec 2005
Posts: 1,780
Likes: 0
From: Eagle Mountain, UT
2009:
http://www.freerepublic.com/focus/news/2280899/posts
Still, that's quite something. I think I'm embarresed for China on at least a weekly basis. One day they'll probably be more powerful than the US, but for now, they're just kind of a joke.
http://www.freerepublic.com/focus/news/2280899/posts
Still, that's quite something. I think I'm embarresed for China on at least a weekly basis. One day they'll probably be more powerful than the US, but for now, they're just kind of a joke.
